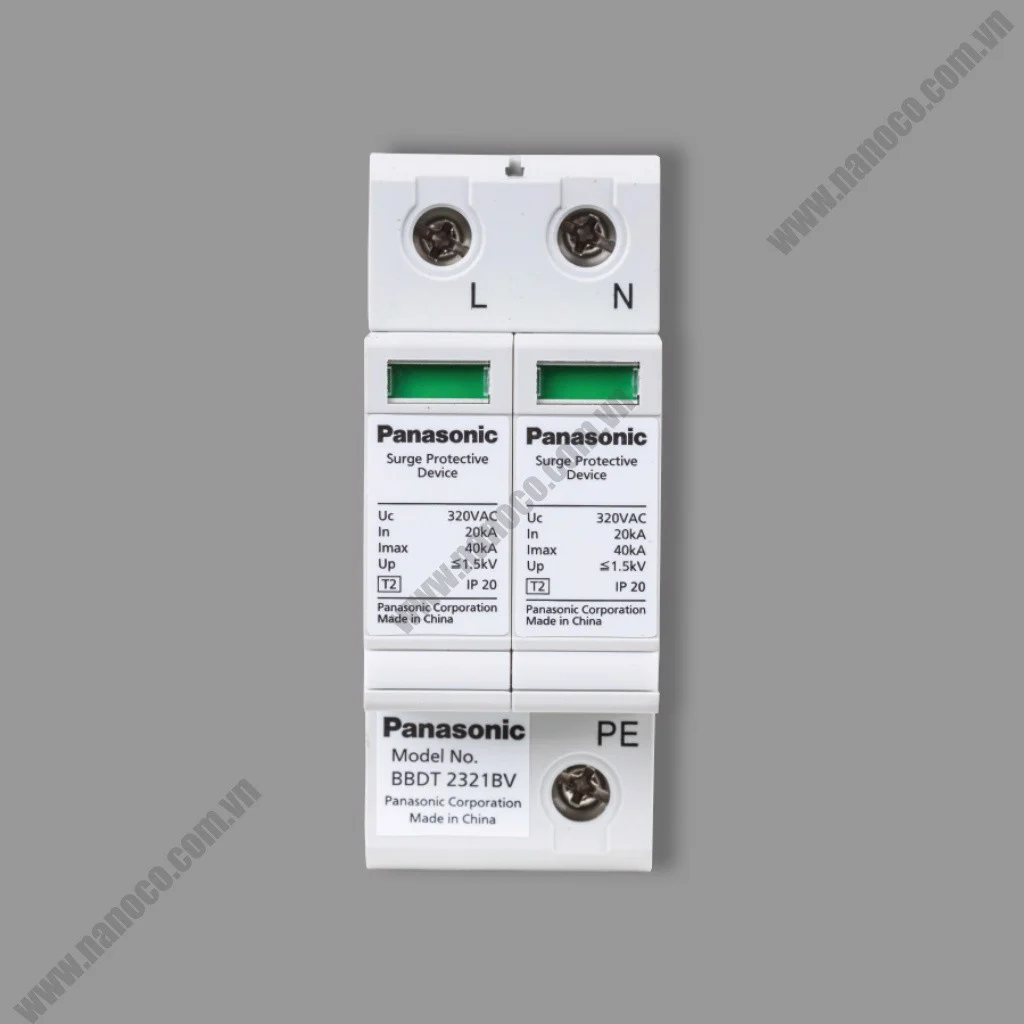

SPD Breaker Panasonic BBDT2321BV

SKU:BBDT2321BV Vendor: Panasonic
Contact: 19006711


1. Description

All equipment such as electrical cabinets, switchgear and safety protection,... are standardized according to international production lines, ensuring compliance with regulations, quality commitments and safety standards on Panasonic's strict electrical.

2. Specifications

Rated voltage (Un)230V
Maximum working voltage (Uc)320V (50/60Hz)
Lightning discharge current (8/20µs)(In)20 kA
Maximum lightning discharge current (8/20µs) (Imax)40 kA
Voltage protection level (Up)≤ 1.5 kV
Response time (tA)≤ 25 ns
Installation type35mm DIN Rail
